Purge Set

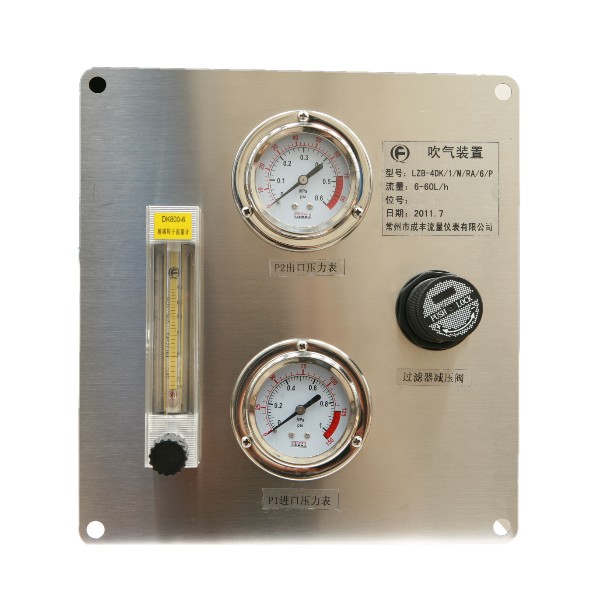

Product Model:Purge Set

■ Summary

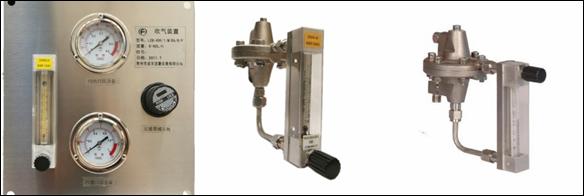

This purge sets are composed of metal tube rotameters or glass tube rotameters with constant flow valves,which can be used for the measurement and keep flow rate of gases or liquids constantly output.

Float flowmeter featured with safety and reliable,measuring precise and steady,so that this series purge sets keep flow rates output constantly even when the supply or load pressure changes,which can be widely used for the transmitters cleaning among the industries of petroleum processing,chemical,ethylene,fertilizer,steel,chemical fiber and textile and so on.,also can be used among the processing control of differential pressure level measurement.

The design of this series products can be fulfill of the industrial control requirements,installation applicable condition also can be fulfill of the requirements of instrument measuring technology.

Features

  • single-path,two-path,multipath(optional);
  • single meter installation,panel mounting,cabinet installation(optional);
  • 1/4〞NPT,swagelok,screw,flange connection(optional);
  • 6mm,8mm,10mm,15mm,25mm pipeline;
  • Switch signal output,4-20mA signal output(optional);
  • Metal structure,simpleness,hardness,beauty;
  • Can test processing temperature below 200℃;
  • Can test processing pressure below 6.4MPa;
  • Flowrate,pressure(optional)indicate on-site;
  • Adopts to our company LZ series float flowmeter;
  • Precision micro needle valves are optional,convenient,flexible,applicable for flowrate field adjustment.



Type Selection



LZ series purge set



1.Flowmeter model:LZ



2.Class model

B

Equip with glass tube flowmeter(select DK series in general)

Z

Equip with metal tube flowmeter

WB

Equip with micro flow metal tube flowmeter



3.Purging form(If one meter,this code shall not select)

1

Single-way purge

2

Double-way purge

3

Multi-way purge(Special demand can order)



4.Instal type

D

Single meter type

M

Faceplate type



5.Pressure adjustment

RE

Inlet pressure adjustment

RA

Outlet pressure adjustment



6.Procedure connection

F

Flange connction

S

Screw connection

6

Φ6mmsleeve chuck

8

Φ8mmsleeve chuck

10

Φ10mmsleeve chuck

Others

According to customers' demand



7.Materials

P

304

R

316

others

According to buyers' demand



8.Others

L

With pressure indicator

G

With magnetic filter
